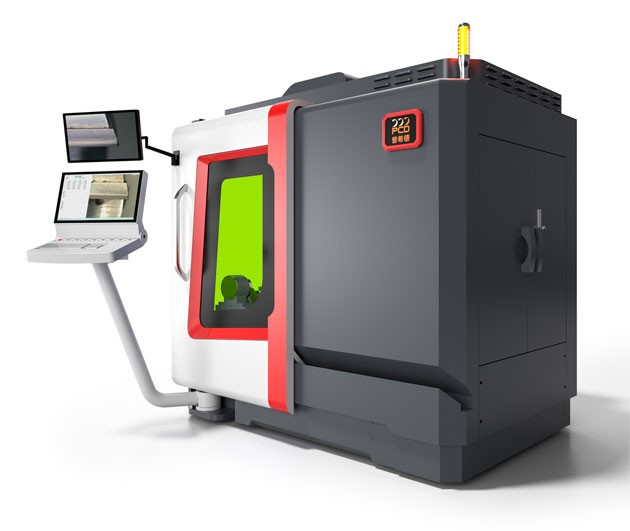

FUTURE LINEAR III

FUTURE LINEARIII is vertical structure, interface can be HSK-A63 or BT50

1.the first type laser machine of PCD company, very good reputation.
2.It integrates 12 years of laser technology expertise with In-house
software innovations, delivering both high-efficiency processing and convenient operation.
3.First choice for cutting tool s in EV industry ， max tool dia is 300mm, max tool length is 430mm, max tool weight is 30kg.
4.Flexible processing methods，for finishing OP, both rake of rake surface and major flank are OK.

Download brochure

Product Description

Equipment parameters

Machine Model	Future linear series L ASER M380
Machine tool linear axis Trevel	XYZ：380380380mm
Rotating Range	Axis A: 0-360. Axis B土45°
Type of laser	1064-120W fiber laser
Main Application	ultra-hard tools cutting edge process；tool flute making
Linear Axis accuracy	Repeat: 0.003mm Positioning:士0.003mm
A/B Rotating accuracy	Repeat: 3 arc seconds Positioning:士3 arc seconds
Maximum tool weight	30KG
Maximum tool diameter and length	Diameter: 300mm Length: 430mm
Dimensions	L: 2280W2950 H2235mm
weight	4.8 tons
Tool (workpiece) mounting interface	HSK-A63 interface/Optional BT50 interface

External dimensions Installation conditions

Power requirements

AC220V ± 10% 2 phase 5KW CE60A or above

Installation environment

Please place the machine on the concrete floor that can bear the weight of the machine, without vibration and impact, within the temperature range of 22 °~26 ° C, humidity<50% RH (no condensation), and the environment is free of oil mist and dust.

Air source requirements

＞0.55MPa

Grounding construction

It is recommended to follow the Class C regulations in the electrical equipment standard. Please construct separately from other machines

Product Details
